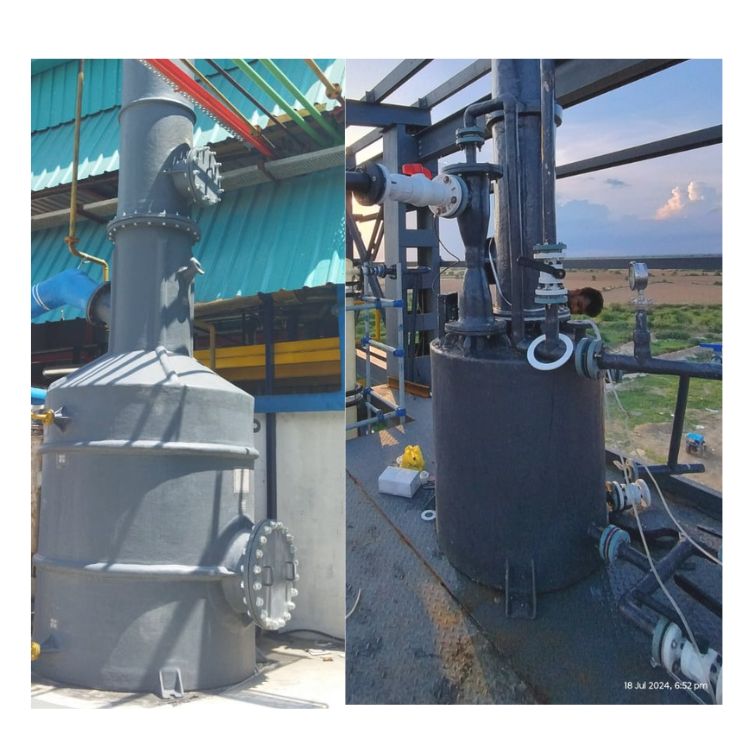

A Vent Gas Scrubber System is a lightweight, portable, and easy-to-install solution designed for cost-effective pollution control from low-volume sources.It consists of a scrubber and a liquid gas separator, both readily available from stock.This system is ideal when it is undesirable to discharge entrained gas along with the scrubbing liquid.The liquid gas separator operates without causing a pressure drop, ensuring the scrubber's capacity remains unaffected. Utilizing gravity, the separator directs liquid to a bottom drain while the gas reverses direction by 180 degrees to exit through a top outlet.Its design allows low gas velocity for efficient separation.
Technical Specification
Parameter
Value
Air Flow
300 to 25,000 CFM
Material Of Construction
PP / FRP / PP+FRP / MS / SS
Removal Technique
Gas – Liquid Mass Transfer and Chemical Absorption
Pressure Drop
75 mm W.C.
Efficiency
Up to 99 %
Models and Options
MODEL NPBS - 30
1. Air Handling Volume -- 400 CFM
2. Material Of Construction-- PP / FRP / PP+FRP / MS / SS
3. Removal Technique -- Gas – Liquid Mass Transfer and Chemical Absorption
4. Pressure Drop --75 mm W.C.
5. Filter Efficience -- 99%
MODEL NBHF - 45
1. Air Handling Volume -- 1000 CFM
2. Material Of Construction-- PP / FRP / PP+FRP / MS / SS
3. Removal Technique -- Gas – Liquid Mass Transfer and Chemical Absorption
4. Pressure Drop --75 mm W.C.
5. Filter Efficience -- 99%
MODEL NBHF - 60
1. Air Handling Volume -- CFM
2. Material Of Construction-- PP / FRP / PP+FRP / MS / SS
3. Removal Technique -- Gas – Liquid Mass Transfer and Chemical Absorption
4. Pressure Drop --75 mm W.C.
5. Filter Efficience -- 99%
MODEL NPBS - 75
1. Air Handling Volume -- 3000 CFM
2. Material Of Construction-- PP / FRP / PP+FRP / MS / SS
3. Removal Technique -- Gas – Liquid Mass Transfer and Chemical Absorption
4. Pressure Drop --75 mm W.C.
5. Filter Efficience -- 99%
Application
Chemical processing plants – Removal of acid gases (HCl, SO2, HF) and toxic vapors.
Petrochemical refineries – Treatment of hydrocarbon vapors, VOCs, and sulfur compounds.
Pharmaceutical manufacturing – Scrubbing solvent vapors, dust, and reaction off-gases.
Fertilizer plants – Control of ammonia, urea dust, and nitrogen-based emissions.
Food & beverage industry – Odor control and removal of organic vapors from processing.
Pulp & paper mills – Neutralization of chlorine and chlorine dioxide fumes.
Textile industry – Control of chemical exhaust from dyeing, bleaching, and finishing operations.
Metal finishing & electroplating – Removal of acid mist and heavy metal fumes.
Wastewater treatment plants – Scrubbing of ammonia, hydrogen sulfide (H2S), and odor emissions.
Incinerators & crematoriums – Removal of acid gases and particulates from flue gas.
Accesories
Spray Nozzles – For effective atomization and liquid distribution inside the scrubber.
Packing Media – Random or structured media to maximize gas–liquid contact.
Mist Eliminator / Demister Pad – Removes fine droplets from the cleaned exhaust gas.
Recirculation Pump – Keeps scrubbing liquid circulating for continuous operation.
Chemical Dosing Unit – Injects neutralizing chemicals into the scrubbing solution.
pH Monitoring & Control System – Maintains proper scrubbing liquid chemistry for efficient gas.
Liquid Level Indicator & Controller – Ensures correct water/liquid levels in the sump or tank.
Fans / Blowers – Provides the required gas flow through the scrubber system.
Access Manways & Inspection Ports – For easy cleaning, inspection, and maintenance.
Control Panel / PLC Automation – For monitoring, alarms, and automated system operation.
